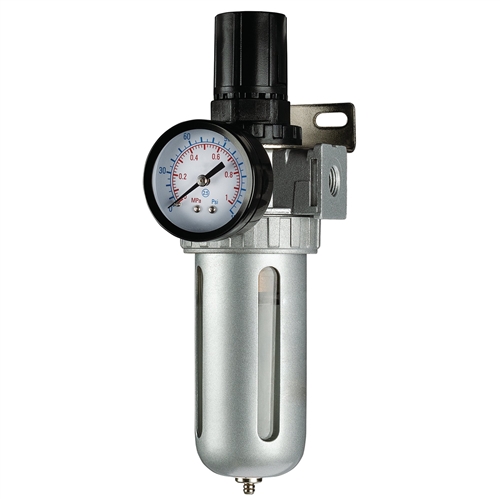

The Draper 70826 Filter/Regulator Unit is designed to eliminate moisture and particulates from the airflow The Draper 70826 is a 1/4" BSP Filter/Regulator Unit that is designed to eliminate moisture and particulates from the airflow. It is made from aluminium with a polished silver finish and is duel-marked with psi and Mpa. Features:
- Designed to eliminate moisture and particulates from the airflow
- The main body of this unit is aluminium with a polished silver finish
- The gauge has a steel casing and is duel-marked with psi and Mpa
- Steel screw-on transparent bowl
- Manual/semi-automatic drain, fitted with 40-micron filter
- Complete with wall bracket
Specification: - Inlet/outlet thread: 1/4" BSP
- Max. inlet pressure: 145psi
- Working temperature range: 5-60 degrees
- Filtration element: 40um
- Dimensions: 214 x 80 x 103mm
- Weight: 0.57kg
