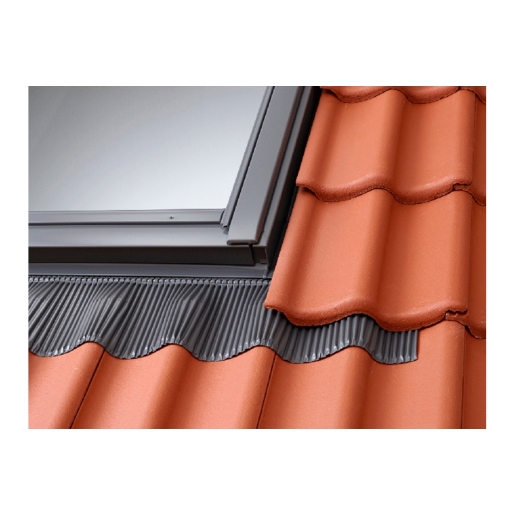

Please note this EDW flashing kit for profiled tiles up to 120mm thick is supplied with a BDX insulation collar and a BFX underfelt collar. Flashing for tiles up to 120mm in profile - EDW VELUX provide a range of flashing options to suit your roof material. • For standard installation heights install the brackets at the top and bottom of the frame at the red line level. • Flashing for installing one roof window in flat or profiled roofing material up to 120mm in profile. • Also for interlocking slate, thatch and profile sheeting. • Maximum profile of 120mm. • Roof pitch between 15 and 90°. • 10 year guarantee. Insulation collar - BDX • Insulates around the roof window frame, reducing heat loss and eliminating cold bridges. • Makes insulating and installing the window a simple process. • Click fittings ensure a fast and accurate assembly. • Comes with an underfelt collar - BFX. Underfelt collar - BFX • Ensures a weather-tight seal between the roof window and the roof. • Pleated material ensures a flexible and tight seal to the underfelt of the roof, whatever it's construction. • Made from diffusion open material to minimise the risk of condensation. • Comes with transverse drainage gutter to lead water away from the head of the window if a tile or slate is broken above the window. • Welded corners ensure a watertight and simple installation. Flashings • VELUX flashings integrate with the roof covering to provide a weathertight finish around the window. • They are compatible with virtually any type of roofing material, from standard covers such as slate and tiles through to corrugated sheeting or even thatch. • Flashings are designed to sit under the roofing materials. • The water from the roof is then collected in the built-in guttering system. • The gutter overlaps a second section of the flashing to help the water flow smoothly down the side of the window. VELUX EDW UK04 2000 Insulated Single Tile Flashing - 134cm x 98cm
